The core electro-acoustic principles behind directional planar wave synthesis, high sound pressure level (SPL) generation, and long-range speech intelligibility index (STI) optimization.
Detailed technical breakdown of compact transducer arrays, independent sound engines, and low-distortion power amplifiers engineered specifically for tactical field operations.
Comprehensive analysis of key hardware specifications, including peak SPL outputs, acoustic beam divergence angles, effective deterrence distances, and battery endurance benchmarks.
Practical tactical deployment modes enabling rapid transitions between handheld operation, shoulder-strap stabilization, backpack tactical movement, and heavy-duty tripod stationing.
In-depth performance evaluation across real-world application domains, including border enforcement, maritime interdiction, civil crowd management, and critical facility perimeter defense.
Essential operational protocols, routine preventative maintenance procedures, and extreme-environment care tips to ensure mission-critical hardware reliability under harsh field conditions.
To understand why a modern Handheld Directional Acoustic Hailing Device radically outperforms conventional public address gear, one must examine the fundamental acoustic physics of sound wave propagation. Traditional loudspeakers generate spherical acoustic waves that expand outward in three dimensions according to the inverse-square law. Under this law, sound intensity decreases by approximately 6 dB for every doubling of distance from the source. Furthermore, spherical dispersion scatters sound energy into unwanted areas, creating destructive environmental reverberations and causing severe feedback when microphones are operated near the sound source.
Directional acoustic hailing devices overcome these physical limitations by synthesizing a highly collimated, planar-like acoustic wavefront. By arranging a closely coupled array of specialized piezoelectric or electrodynamic compression drivers within a precisely tuned baffle geometry, the device generates phase-coherent sound waves. These individual sound waves interfere constructively along the central axis while interfering destructively outside the primary beam path. The primary output is concentrated within a tightly controlled sound beam (typically 30 degrees wide, or +/-15 degrees off center), concentrating the bulk of the generated acoustic energy directly toward the target zone.
This precise beamforming capability delivers three immense operational advantages in field operations:
Massive Energy Density at Distance: Concentrating acoustic power into a tight 30-degree beam maintains high sound pressure levels over vastly greater distances compared to omnidirectional speakers operating at identical electrical power inputs.
Unrivaled Speech Intelligibility (STI): By preventing sound from scattering off ground surfaces, walls, or water bodies, the sound beam reduces multipath phase cancellation and echo reverberation. As a result, spoken commands retain high speech intelligibility even over several hundred meters in noisy, high-wind environments.
Operator and Bystander Protection: The acoustic output behind and beside the hailing unit is attenuated by as much as 20 to 30 dB relative to the primary beam. This sharp drop in sound pressure ensures tactical operators can deliver high-decibel warning alerts without requiring heavy hearing protection or risking permanent auditory damage to surrounding personnel.
From a design engineering standpoint, achieving this level of performance in a portable format requires custom electro-acoustic hardware. High-flux neodymium magnetic structures, lightweight composite diaphragms, and specialized dispersion horns are combined to maximize electro-acoustic conversion efficiency. This ensures that every watt of electrical power supplied by the onboard battery bank translates directly into targeted, high-clarity acoustic output.

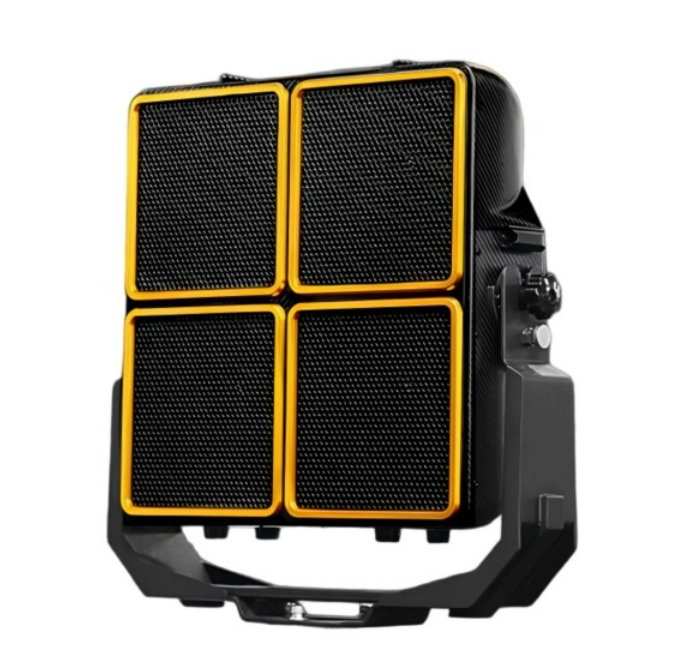

A professional Handheld Directional Acoustic Hailing Device represents an integrated system of military-grade electronics, advanced materials science, and rugged mechanical engineering. Every component—from the dynamic noise-canceling microphone to the outer housing—is optimized to withstand harsh tactical deployment while maintaining consistent electro-acoustic output.
The core acoustic engine relies on high-efficiency compression drivers integrated into an impact-resistant composite structural shell. The internal power amplifier uses advanced Class-D architecture, delivering greater than 90% power efficiency. This minimizes internal heat generation and maximizes operational runtimes from the internal lithium-ion battery system. An independent digital sound generator module provides instant access to pre-recorded authoritative warning tones, localized multi-language voice instructions, and emergency sirens at the push of a button.
To examine the engineering performance metrics that characterize these high-power handheld devices, the table below details the core hardware and operational parameters:
Parameter Category | Technical Specification / Hardware Architecture |
Acoustic Performance | • Peak SPL: 147 dBA @ 1m • Continuous SPL: ~138 dBA @ 1m • Effective Notification Range: Up to 1000 meters |
Hardware Architecture & Structure | • Acoustic Transducer Array: High-efficiency directional acoustic transducer array • Form Factor: Lightweight handheld/portable deployment architecture • Protection Rating: IP65 industrial-grade ruggedized enclosure |
Power & Endurance System | • Power Source: Built-in high-capacity rechargeable battery pack • Continuous Operation Endurance: ≥ 6 hours |
Physical Characteristics | • Weight: 5.45 kg • Dimensions: 245 mm * 270 mm * 245 mm |
Functional Capabilities | • Operational Modes: Real-time high-intelligibility voice broadcasting, pre-recorded warning tone playback, and targeted acoustic deterrence |
To explore technical design details on lightweight directional acoustic hail units engineered for frontline security forces, review our handheld acoustic hailing device.
The internal modular electronics are protected against severe mechanical shock and vibration, allowing the unit to remain fully operational during vehicle transport over rough terrain or intense field maneuvers. The integrated noise-canceling dynamic microphone is tuned specifically to vocal speech frequencies (300 Hz to 3.5 kHz), filtering out ambient wind noise, vehicle engines, and tactical noise before signal amplification.
High-Gain Transducer Baffle Array: Phase-aligned electro-acoustic drivers engineered to output uniform acoustic energy across the targeted frequency spectrum.
Independent Digital Sound Module: Dedicated digital storage unit loaded with high-purity tone sequences, multi-lingual phrase books, and emergency sirens.
Ergonomic Tactical Control Interface: Rubberized, glove-compatible control layout featuring master volume knobs, quick-select tone switches, and instant push-to-talk (PTT) triggers.
Sealed Battery Enclosure: Rapid-swap lithium battery bay fitted with heavy-duty silicone gaskets to ensure water tightness under driving rain and high humidity.
A primary challenge facing tactical equipment designers is balancing high power output with true mobility. Historical acoustic hailing devices capable of generating over 140 dB SPL were heavy, cumbersome boxes requiring permanent vehicle or vessel mounting. However, frontline tactical teams, perimeter guards, and rapid-response forces require equipment that moves at the speed of the operation.
To meet this requirement, modern high-power hailing devices feature a modular physical framework supporting four distinct deployment modes. This adaptability allows field operators to reconfigure the acoustic device within seconds based on operational demands:
Featuring dual ergonomic handles with textured, non-slip rubber grips, the device can be held directly by a single operator. The slender vertical casing distributes weight evenly, allowing rapid aiming toward moving targets. Integrated index-finger PTT triggers enable quick voice communication during mobile tactical sweeps.
For extended mobile patrols, the unit attaches to a quick-release padded shoulder strap. The strap transfers the 5.2 kg weight across the operator's torso, reducing arm fatigue while keeping the control interface within immediate reach. The operator can stabilize and aim the device with one hand while keeping the other free for secondary equipment.
When long-distance foot movement across rugged terrain is required, the hailing device secures into a dedicated tactical chest or backpack harness. Mounted vertically over the shoulder or on the back, the acoustic array projects forward or backward while keeping both hands completely free. A remote corded microphone and control switch attach to the operator's tactical vest for effortless operational control.
For stationary security posts, check-points, border gates, or vessel decks, the unit incorporates a standardized quick-attach tripod socket. Mounted on an adjustable aluminum or carbon-fiber tripod, the acoustic device can be elevated and locked at a precise heading and tilt angle. This configuration allows continuous monitoring and deterrence operations without requiring manual operator hold.
This structural versatility ensures that a single investment in high-power directional hailing hardware serves multiple operational groups within an organization—from mobile tactical response units to fixed perimeter security details.
The operational utility of a high-power Handheld Directional Acoustic Hailing Device extends across a broad range of defense, law enforcement, and industrial security applications. Its ability to deliver authoritative speech and non-lethal acoustic deterrence over extended distances fills a critical capability gap between verbal warnings and kinetic force options.
During large-scale public demonstrations, civil disturbances, or unauthorized gatherings, maintaining clear communication is essential to de-escalate tension and guide peaceful crowds. Conventional public address systems often produce distorted, garbled audio that worsens confusion and panic. A handheld directional device allows commanders to target specific sectors of a crowd with intelligible, step-by-step instructions. If non-lethal crowd dispersal becomes necessary, the device can emit high-intensity warning tones (145dBA peak @ 1m), creating a localized zone of acoustic discomfort that encourages individuals to retreat from restricted areas without causing permanent physical injury.
In maritime environments, background engine noise, wind roar, and wave impacts severely degrade standard communications. Coast guards, naval boarding teams, and commercial vessel security details utilize portable acoustic hail units to establish long-range stand-off distances. Security personnel can hail unidentified boats, issue clear maritime interdiction instructions, and broadcast non-lethal warning deterrents before suspect vessels enter hazardous proximity. The high-impact composite casing and sealed electronics are specifically built to withstand salt fog, high moisture, and harsh marine environments.
Border security forces operating along extensive national boundaries face challenging terrain and wide open spaces. A portable directional device provides perimeter guards with a lightweight, long-range tool to issue clear verbal warnings to unauthorized border crossers across rivers, valleys, or fence lines. For industrial critical infrastructure—such as oil refineries, nuclear facilities, and power generation plants—fixed tripod or backpack-mounted acoustic hailing systems allow security details to secure long perimeters against intrusion without resorting to immediate kinetic measures.
During natural disasters, such as floods, earthquakes, or wildfires, municipal communication infrastructure often fails. Emergency response teams equipped with self-powered directional hailing devices can broadcast search instructions, evacuate threatened residential zones, and direct rescue operations across noisy flooded streets or debris fields. High speech intelligibility ensures that life-saving instructions are understood by survivors over long distances.
To explore fully integrated acoustic-optical solutions and specialized long-range warning equipment for industrial and defense sectors, examine our advanced directional hailing hardware solutions.
To illustrate the technical advantages of directional electro-acoustic architecture over legacy public address hardware, the comparative analysis below highlights the performance differences across critical operational metrics:
Performance Characteristic | Traditional Public Address Megaphone | Handheld Directional Acoustic Hailing Device | Operational Significance |
Peak Acoustic Output (SPL) | 105 dB to 118 dB @ 1m | 135 dB to 145 dB @ 1m | Exceeds ambient background noise by 25–30+ dB; penetrates engine roar and storm noise. |
Acoustic Beam Width | 120° to 180° Wide Conical | 30° Focused Directional Cone | Focuses energy directly on target zone; attenuates sound behind the operator by up to 30 dB. |
Effective Intelligible Distance | 50 m to 100 m Maximum | 300 m to 500+ meters | Delivers 5x to 10x greater operational range for early warning and stand-off safety. |
Speech Intelligibility Index (STI) | Low (high distortion & echo) | High (>0.85 STI score) | Commands are clear and intelligible, preventing misunderstandings during critical events. |
Operator Auditory Safety | Poor (high spillover to operator) | Excellent (rear acoustic attenuation) | Protects tactical operators from hazardous noise exposure without requiring heavy ear protection. |
Deployment Adaptability | Handheld Only | Handheld, Strap, Backpack, Tripod | Adapts instantly to rapid mobile maneuvers, long foot patrols, or fixed-station security. |
Environmental Durability | Basic Commercial Plastics | IP65/66 Ruggedized Composite | Operates reliably in heavy driving rain, salt spray, sandstorms, and extreme temperatures. |
To ensure long-term equipment reliability and peak electro-acoustic performance under harsh operational conditions, security organizations should establish structured maintenance procedures. Proper care directly impacts battery lifespan, structural integrity, and acoustic clarity over years of field service.
Transducer Mesh and Horn Cleaning: Keep the front acoustic baffle and protective mesh free of salt deposits, mud, sand, and atmospheric grime. Clean the outer horn assembly using a soft cloth dampened with fresh water or a mild non-abrasive detergent solution. Never insert sharp objects, metal needles, or high-pressure air nozzles into the transducer face, as this can puncture the weather-seal membranes or damage delicate driver diaphragms.
Environmental Seal Inspection: Regularly check the silicone perimeter gaskets along the battery compartment door, cable connector ports, and microphone interface plugs. Apply a micro-layer of dielectric silicone grease to seal rings every six months to prevent rubber dry-rot and maintain IP65/IP66 ingress protection against moisture and dust.
Connector and Cable Port Maintenance: Inspect multi-pin dynamic microphone connectors and remote control jacks for sign of corrosion or bent pins. Apply specialized electrical contact cleaner to keep signal paths free of oxidation, especially after deployment in salt-fog marine environments.
